Filter Vacuum Chamber

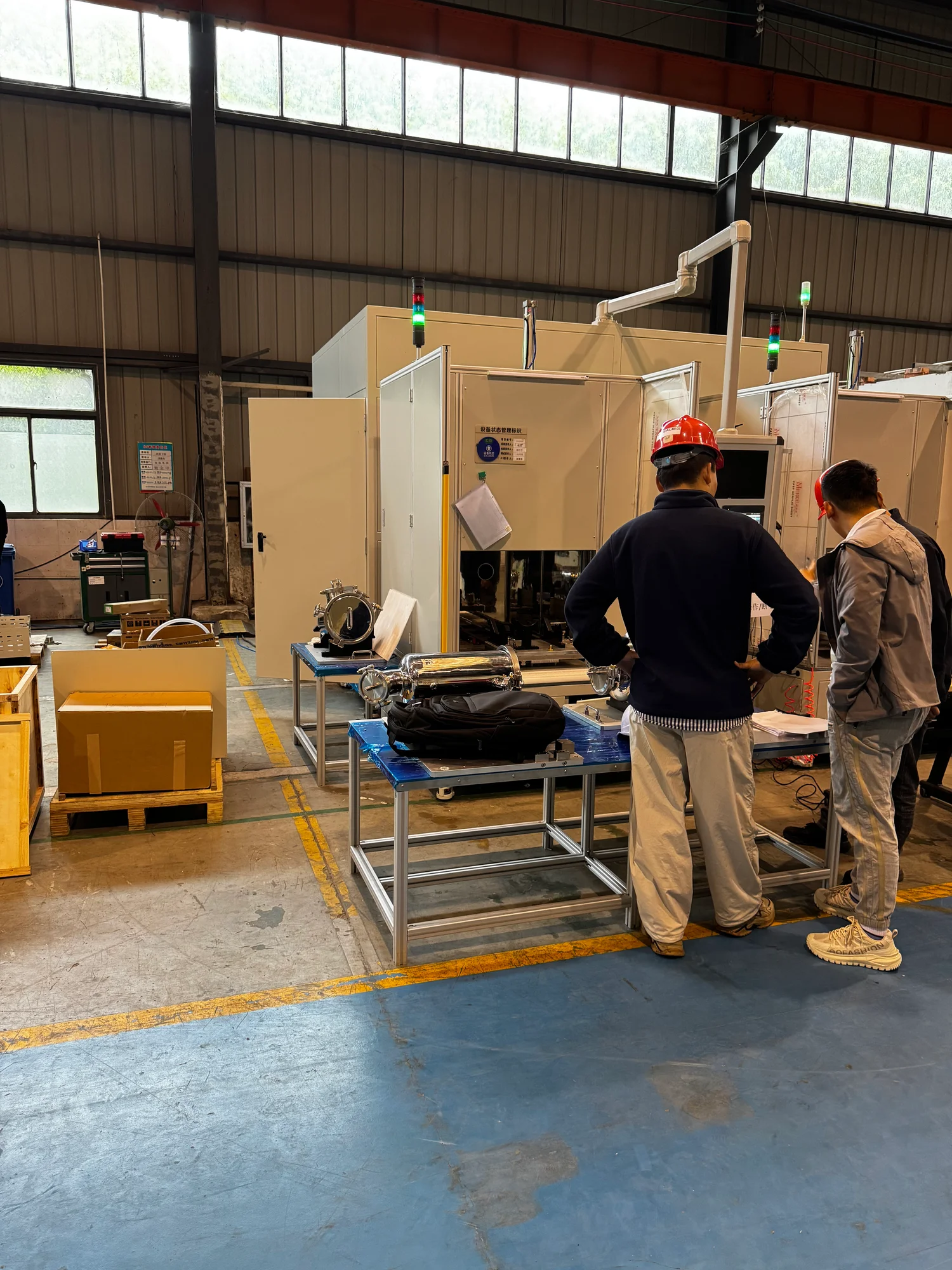

Filter Vacuum Chamber Helium Leak Detection System
A vacuum chamber helium leak detection system for filters and valves in liquid cooling assemblies. A helium leak detector works with a movable vacuum chamber trolley to accommodate different workpiece shapes and support frequent model changeovers. Workpiece sealing is manual.
Server Liquid Cooling Liquid Cooling Components
SKU Details
Key Configuration
Use these details as a starting point. Chamber dimensions, tooling, pumping speed, and automation level can be configured around the actual component and cycle time.
Technical Specifications
| Cycle time | ≥80 s/chamber |
|---|---|
| Workpieces tested per chamber | 1 |
| Workpiece pressurization | ≤1.1 MPa |
| Detection sensitivity | 5 × 10⁻⁷ Pa·m³/s |
| Sealing method | Manual |
| Standard vacuum chamber dimensions | 800 mm (W) × 600 mm (D) × 600 mm (H) |
Product Highlights
| System design | Helium leak detector combined with a movable vacuum chamber trolley. |
|---|---|
| Model changeover | Accommodates workpieces of different shapes and supports frequent model changeovers. |
| Applications | Filters, valves, and other components that require frequent model changeovers. |
Filter Evacuation and Helium Recovery

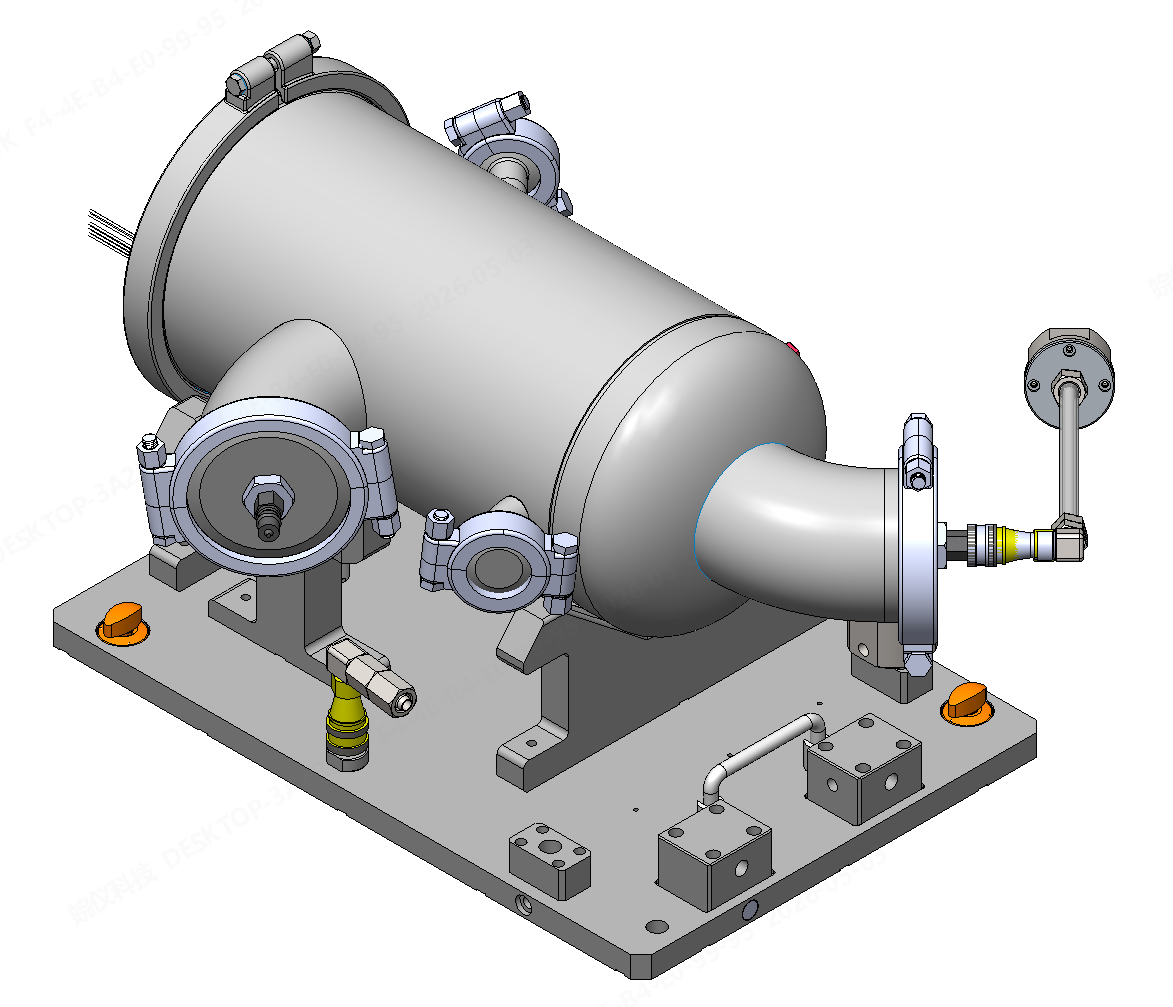

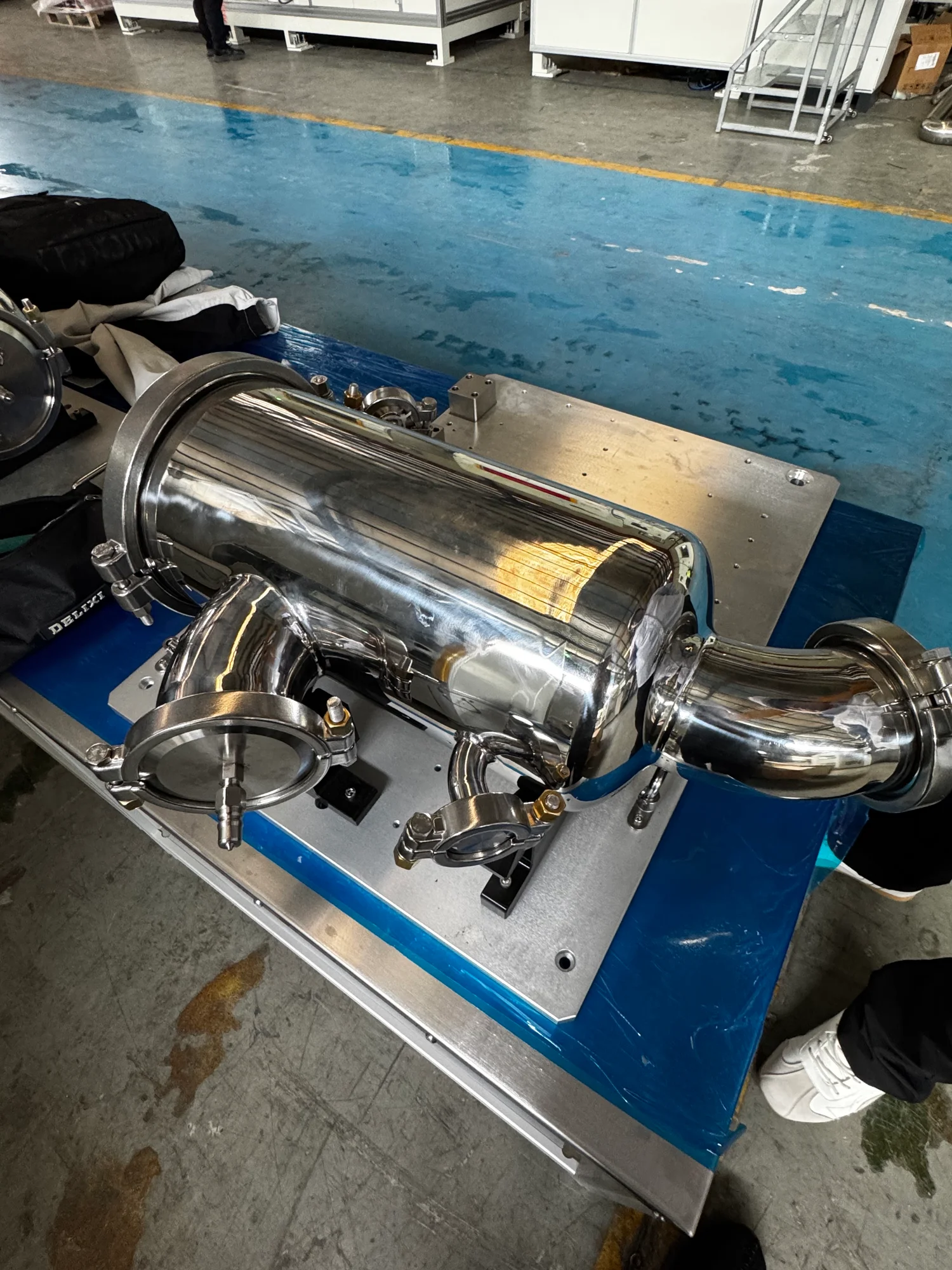

| Filter element | The reference filter workpiece contains a metal-fiber filter element. |
|---|---|
| Evacuation connections | During evacuation, use the workpiece inlet and outlet concurrently. |
| Helium recovery connections | During helium recovery, use the workpiece inlet and outlet concurrently as well. |
| Helium recovery rate | The metal-fiber filter workpiece has a lower helium recovery rate than conventional workpieces. |
| Cycle time confirmation | Reference cycle time: ≥80 s/chamber. Confirm the production cycle for the actual filter element, workpiece volume, and evacuation requirements. |
Configure Your Filter Helium Leak Test System
Share your filter or valve dimensions, inlet and outlet connections, filter element, test pressure, target leak rate, and changeover needs. We will confirm the chamber, sealing fixture, evacuation and helium recovery arrangement for your workpiece.
